Pivot Cycles Mach 6 Carbon Race XT - 2021

Pivot Cycles Mach 6 Carbon Race XT
  • Color: Blue Mirage
  • Color: Aqua Blue
  • Color: Sterling Silver
Please select options
Only available at our retail store location. Please visit us soon.


Consider the Bar Officially Raised
Pivot's renowned Mach 6 Carbon is longer, lower, and sets a new benchmark for enduro and aggressive trail bikes. The Mach 6's peerless pedaling efficiency and downhill handling make it the perfect choice for dropping into black-diamond terrain and hitting technical features at race pace. From peak to podium, the Mach 6 Carbon is enduro performance, redefined.

Longer, Lower...For Every Size of Rider

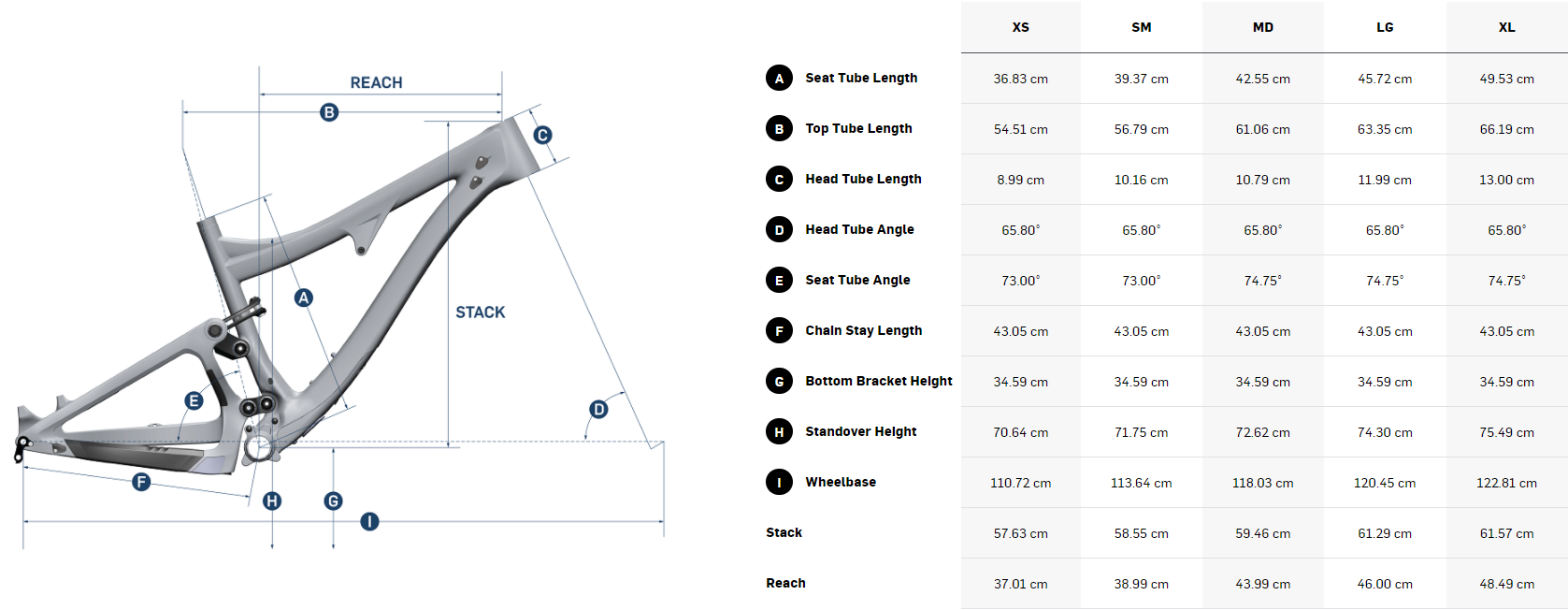

The Mach 6 features truly progressive geometry—a slacker head angle and long cockpit for stability and poise on the steepest descents, a steeper seat angle to help you scale the worst climbs, and shorter chainstays for snappy handling on the tightest trails. On a lot of bikes "long and low" essentially means "This isn't going to fit you smaller riders". But that's not the case here.

Though we went long and low on the new Mach 6, smaller riders still fit the bike easily. That's because our Medium, Large, and X-Large see significant increases in top tube length, while our Small and X-Small models remain compact, in keeping with our rider-size-specific design philosophy. What's more, smaller riders still reap the climbing advantages of the steeper seat angle and the capable descending traits that come courtesy of the slacker head angle.

Suspension Perfected
We spec'd the Mach 6 with a Fox Factory Kashima Float DPX2 shock, tuned specifically for enduro and trail applications. The Float DPX2 features X2 oil-flow architecture in a lighter, better-pedaling package. The DPX2 also offers an incredibly wide range of tuning options to suit a wide range of rider weights and preferences; those include three on-the-fly lever adjustments—Open, Medium, and Firm options, with an additional adjustment for tuning low-speed compression on the open setting.

The EVOL air sleeve on the Mach 6's DPX2 significantly reduces the force required to initiate travel, for the ultimate in small bump compliance and better bottom-out resistance. When combined with the ultra-low friction Kashima coating, this design offers an incredibly plush feel with a wide range of damping adjustments.


Frame Mach 6 Carbon
Fork Fox Performance 36 27.5", 44mm offset, GRIP - 160mm
Headset Pivot Semi-Sealed Cartridge
Rear Shock Fox Performance DPX2
Rims/Wheels DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 27.5"
Tires Front: Maxxis Minion DHF 27.5 x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Rear: Maxxis Minion DHRII 27.5 x 2.4" WT, TR, 3C, EXO+
Crankset Race Face Ride 32t
Chain Shimano CN-M7100 12-Speed
Rear Derailleur Shimano XT SGS 12-Speed
Cassette/Rear Cogs Shimano SLX M7100 10-51t
Shifters Shimano SLX M7100 12-Speed
Handlebars Phoenix Race Low Rise Aluminum - 800mm
Tape/Grips Phoenix Team Padloc
Stem Phoenix Team Enduro/Trail
Brakes Shimano SLX M7120 4-piston w/Shimano SLX 6-bolt 180mm rotors
Pedals Sold separately
Saddle Phoenix WTB Race Vigo
Seat Post Fox Transfer Performance Series 100mm (XS-SM) 125mm (MD-LG), 150mm (XL)

* Subject to change without notice.

Part Numbers

Option MPN
Blue Mirage / X-Small 00M6CV327ASXA--BLMXSDRPPN
Blue Mirage / Small 00M6CV327ASXA--BLMSMDRPPN
Blue Mirage / Medium 00M6CV327ASXA--BLMMDDRPPN
Blue Mirage / Large 00M6CV327ASXA--BLMLGDRPPN
Blue Mirage / X-Large 00M6CV327ASXA--BLMXLDRPPN
Aqua Blue / X-Small 00M6CV327ASXA--BLUXSDRPPN
Aqua Blue / Small 00M6CV327ASXA--BLUSMDRPPN
Aqua Blue / Medium 00M6CV327ASXA--BLUMDDRPPN
Aqua Blue / Large 00M6CV327ASXA--BLULGDRPPN
Aqua Blue / X-Large 00M6CV327ASXA--BLUXLDRPPN
Sterling Silver / X-Small 00M6CV327ASXA--SILXSDRPPN
Sterling Silver / Small 00M6CV327ASXA--SILSMDRPPN
Sterling Silver / Medium 00M6CV327ASXA--SILMDDRPPN
Sterling Silver / Large 00M6CV327ASXA--SILLGDRPPN
Sterling Silver / X-Large 00M6CV327ASXA--SILXLDRPPN
