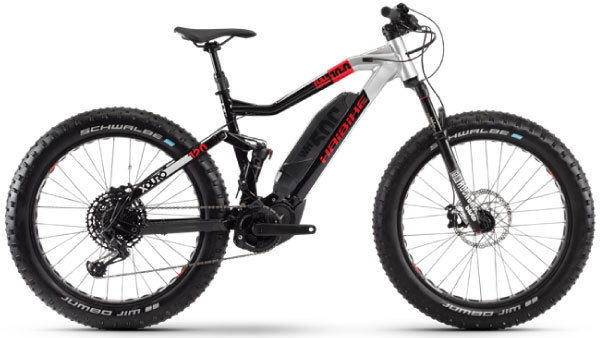

Haibike XDURO FullFatSix 10.0 - 2020

Haibike XDURO FullFatSix 10.0
Please select options
This item is not permitted to be shipped; however, it can be purchased online and picked up at your convenience.


The Haibike XDURO FullFatSix 10.0 is as formidable as its name, combining e-bike technology with dual suspension and giant fat tires. With this model, Haibike has created an off-roading monster that eats up anything in its path. It's the perfect companion for riders who want the ability to go anywhere and have a blast doing it.

RockShox suspension plays a key roel in this build, benefiting from a Bluto RL 100mm fork and a 47.5mm Deluxe Select Air shock. Add all that travel to the already massive Schwalbe Jumbo Jim Evo, 26" x 4" tires and you get a bike that floats over every obstacle and provides a comfortable, capable ride wherever you take it.

The FullFatSix 10.0 has enough gear range for the steepest climbs thanks to the 1x12 SRAM GX Eagle drivetrain and 11-50 tooth cassette. And when you reach the top of the mountain and point this beast downhill, you can be confident that the e-bike proven TRP-29 disc brakes will give you all the control you need to smoothly navigate down.

As for the motor, the FullFatSix 10.0 features a Yamaha PW-X2 250 W drive system that puts out 80 Nm of torque and provides assisted speeds up to 20mph. The 500wh lithium ion Yamaha battery charges quickly and provides plenty of juice for ambitious rides. A simple display system lets you switch between levels of assist with ease so you can keep your focus on the trail ahead.


Yamaha, PW-X2, 250 W, 80 Nm, 20mph (25 km/h)


Yamaha, Lithium Ion, 500 Wh


Yamaha, Side Switch, 1.7" LCD, 7 functions

A FRAME HEIGHT (CM) 42.0 cm 46.0 cm 50.0 cm
B SEAT TUBE ANGLE 74.0 degrees 74.0 degrees 74.0 degrees
C SEAT TUBE OFFSET (MM) 10.0 mm 10.0 mm 10.0 mm
D SEAT ANGLE 74.9 degrees 74.9 degrees 74.9 degrees
E HEAD TUBE LENGTH 130.0 mm 140.0 mm 150.0 mm
F HEAD TUBE ANGLE (DEGREES) 68.0 degrees 68.0 degrees 68.0 degrees
G TOP TUBE HORIZONTAL 590.0 mm 610.0 mm 630.0 mm
H CHAIN STAY LENGTH 460.0 mm 460.0 mm 460.0 mm
I BOTTOM BRACKET DROP -20.0 mm -20.0 mm -20.0 mm
J WHEELBASE 1179.0 mm 1200.0 mm 1222.0 mm
K STACK 617.0 mm 626.0 mm 635.0 mm
L REACH 424.0 mm 441.0 mm 458.0 mm
M STAND-OVER HEIGHT 78.0 cm 79.0 cm 81.0 cm


Frame Haibike, XDURO FullFatSix, Aluminium 6061, Thru-axle M12 (1.50) x 197mm, Disc brake Post Mount, Travel= 120 mm
Fork RockShox, Bluto RL, Remote Lockout, Air, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 150mm thru-axle
Headset Feimin, A-Head Tapered, Aluminium, cartridge bearing
Rear Shock RockShox, Deluxe Select Plus, Air, 47.5 mm
Rims/Wheels Alexrims, Blizzerk80, Aluminium
Hubs Haibike Components, TheHub ++, 6-bolt standard
Tires Schwalbe, Jumbo Jim Evo, 100-559, 26" x 4.00"
Crankset Haibike, Forged, Aluminium
Chainwheel Sram, 38 teeth
Bottom Bracket integrated in the motor
Chain Sram, GX Eagle
Rear Derailleur Sram, GX Eagle
Rear Cogs Sram, Eagle PG1230, 11 - 50 teeth
Shifters Sram, Trigger switch, 12 speed
Handlebars Haibike Components, TheBar +++ Gravity, 780 mm
Tape/Grips Haibike, MTB grips
Stem Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Brake Levers TRP, G-Spec Trail S, Aluminium
Brakes TRP, G-Spec Trail S, 203 mm (ft) 180 mm (rr), 4-piston disc brake
Pedals Freeridepedal, Aluminium, with Reflector
Saddle Haibike Components, TheSaddle
Seat Post Kind Shock, LEV-DX, Telescope, 31.6 mm
Sizes S, M, L
Weight 24.8 kg

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Large 18-0710866 HAI34630347K
